SHOP KEYS ONLINE22mm Multi-Point Lock with Removable Barrel 0488
Technical Drawing
A 22 mm Multi-Point Lock 0488 with a removable barrel. These locks are ideal for use on applications such as cupboards, drawers and desks.
- Standard movements: 3 (180° CW)
- Nozzle diameter: 16.3mm or 17.8mm
- Lock Combinations: 500
- Standard finish: Bright nickel, black KTL
- Can be supplied with Master Key and Sub-Master Key systems
Rosettes available – please state when ordering:
- Rosette 70080037B (16.3mm nozzle)
- Rosette C4236 (17.8mm nozzle)

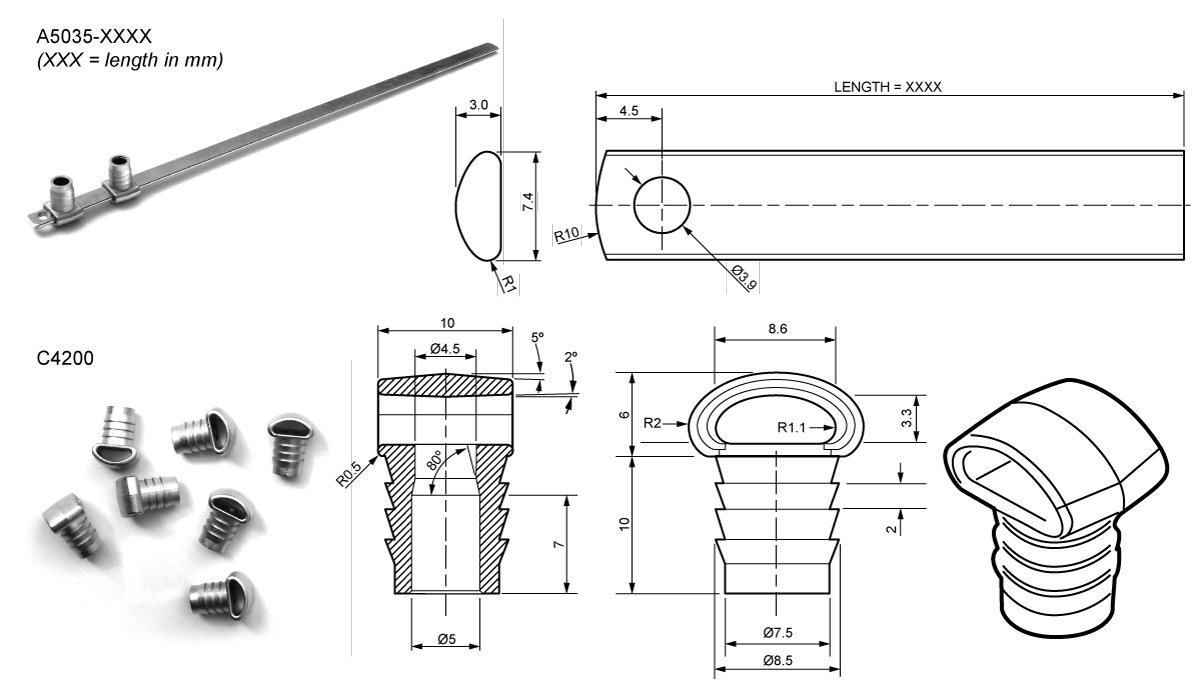

Accessories
| Product code | Description | Notes |
| A5035 – xxxx | Nickel plated rod to suit the 0488 multi-point lock | Can be supplied in standard 1 – 2 metre lengths or cut to suit |
| C4200 | Quick fixing rod guide to suit the A5035 rod | Can be supplied with noise reduction peg |
Key Options
Metal Keys |
Capped Keys |
Split Keys |
||||||||||||||||||||
 |
 |
 |
||||||||||||||||||||
|
|
|
||||||||||||||||||||
General Master Key |
Sub-Master Keys |
Removal Key |
||||||||||||||||||||
 |
 |
 |
||||||||||||||||||||
|
|
|
